Condition: New

Warranty: 5/1 Years

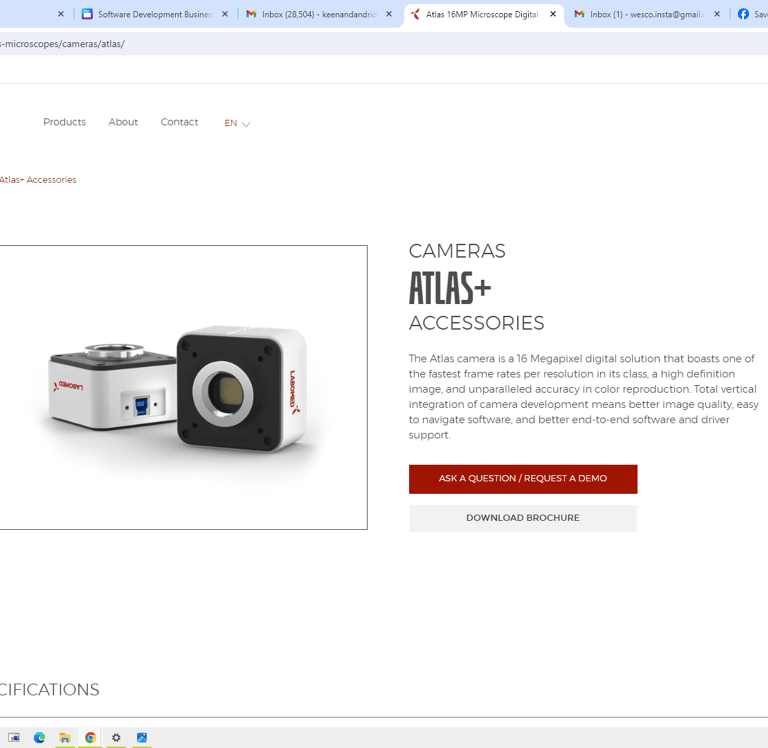

Atlas 16MP

The Atlas camera is a 16 Megapixel digital solution that boasts one of the fastest frame rates per resolution in its class, a high definition image, and unparalleled accuracy in color reproduction. Total vertical integration of camera development means better image quality, easy to navigate software, and better end-to-end software and driver support.

    • Software Requirements

      Microsoft Windows (XP and later versions) / Linux / Mac

    • Optical connection

      C- Mount

    • Power indication

      Green LED indicating power on and ready for capture

    • Active area

      5.70mm x 4.28mm

    • A/D conversion

      24 Bit RGB

    • Image processing

      High speed FPGA, progressive scan, advanced noise reduction

    • Interface

      USB 3.0

    • Ambient conditions

      Operating Temperature: 0-60˚C Humidity: 45-85%

    • Sensor resolution

      Dynamic 2304x1728 / 4608x3456 pixels Static 4608x3456 pixels

    • Pixel clock

      48 MHz

    • Voltage

      5v2a (USB)

    • Pixel Size

      1.335μm x 1.335μm

    • Exposure

      1ms-1s auto/manual, white balancing, electronic rolling shutter

    • Frame rate

      25 fps (@2304x1728) 5 fps (@4608x3456)

    • Sensor

      1/2.33” 16.0 MP Color CMOS

    • Dynamic range

      59.5 dB; 1800-8000˚K

    • Measurement
