Condition: New

Warranty: 5/1 Years

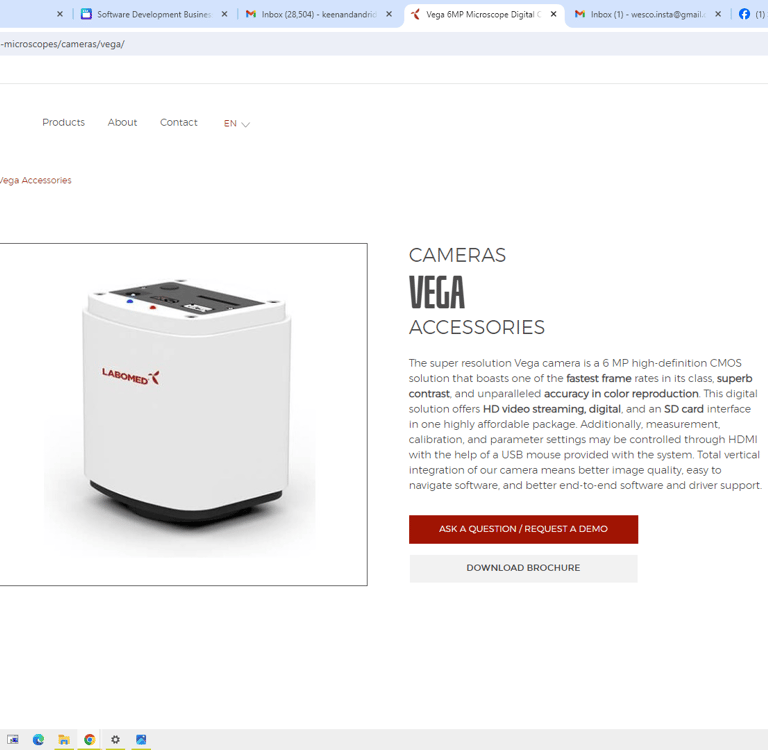

Vega 6MP

The super resolution Vega camera is a 6 MP high-definition CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package. Additionally, measurement, calibration, and parameter settings may be controlled through HDMI with the help of a USB mouse provided with the system. Total vertical integration of our camera means better image quality, easy to navigate software, and better end-to-end software and driver support.

    • Sensor

      1/2.8” 6.0 MP Color CMO

    • Sensor resolution

      Dynamic 1920x1080 pixels Static 3264x1836 pixels

    • A/D conversion

      24 Bit RGB

    • Interface

      USB 3.0, HDMI, SD card, mouse control

    • Active area

      5.70mm x 4.28mm

    • Frame rate

      30 fps (@1080p)

    • Optical connection

      C- Mount

    • Pixel Size

      2.7μm x 2.7μm

    • Dynamic range

      65 dB

    • Measurement


    • Software Requirements

      Microsoft Windows (XP and later versions) / Linux / Mac

    • Pixel clock

      48 MHz

    • Image processing

      High speed FPGA, progressive scan, advanced noise reduction

    • Ambient conditions

      Operating Temperature: 0-60˚C Humidity: 45-85%

    • Voltage

      AC power (universal)

    • Power indication

      Green LED indicating power on and ready for capture

    • Exposure

      1ms-1s auto/manual, white balancing, electronic rolling shutter
