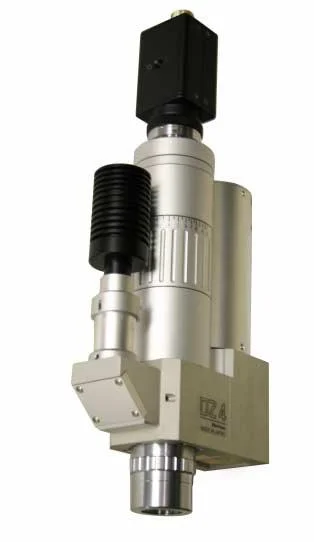

DZ4 High Resolution Zoom Microscope

dz4 high resolution.jpg

HIGH MAGNIFICATION AND HIGH RESOLUTION ZOOM MICROSCOPE

  • Lightweight / Compact
  • Zoom ratio 12:1 (0.83X to 10X)
  • Fiber Optic / LED Illumination
  • 5 objective options

Objectives:

  • ZC5 0.42x - 5x W.D. 45 mm (Total Magnification 25.2x - 300x)
  • ZC15 1.25x - 15x W.D. 46.2mm (Total Magnification 75x - 900x)
  • ZC50 4.16x - 50x W.D. 14 mm (Total Magnification 249.6x - 3000x)
  • ZC30 2.5~30x W.D. 35.25mm (Total Magnification 150x - 1800x)
  • ZC70 5.83x - 70x W.D. 7.1mm (Total Magnification 349.8x - 4200x)

Download PDF

Model Stage Travel (X-Y) Stage-Insert Glass Size Space for Specimens Rotation Angle T-slots for Tools Stage Size
100D 100 x 100mm
(with linear scale)
ø179mm ø206mm 360° --- 244 x 244 x 83mm
505S 50 x 50mm ø100mm ø118mm 360° --- 150 x 150 x 45mm
505L 50 x 50mm ø100mm ø170mm 360° T-slots (2) 205 x 205 x 95mm
510 100 x 50mm 170 x 120mm 280 x 190mm --- T-slots (3) 285 x 205 x 95mm
510D 100 x 50mm
(with linear scale)
170 x 120mm 280 x 190mm --- T-slots (3) 285 x 205 x 95mm
