Condition: New

Warranty: 5/1 Years


Luxeo 4Z

  • Optical System


  • Illumination Control

    Incident / Transmitted (Oblique Settings) / Combined illumination control buttons with rheostat dial for light intensity control

  • Incident Light

    + / - 30º Oblique illumination and variable intensity control dial

  • Magnification

    4.4:1 Zoom Ratio

  • Transmitted Light

    3-LED super bright glow screen, low heat emission

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

  • Eyepiece

    Widefield 10x/18mm (interchangeable)

  • Object Field Diameter

    6.6 to 28.5 mm

  • Diopter Correction

    + / - 5 diopters

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emmissions

  • Magnification Range

    8x to 35x Continuous

  • LED Life

    Up to 25,000 hours

  • Viewing Body

    Integrated Binocular, 45º, 52-74mm diopter adjustment

  • Working Distance


  • Eye Guards

    Rubber, Retractable

  • Incident Light Method

    Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light (5 LEDs)

  • Camera Adapters

    C-mount adapters 0.3x, 0.5x, 0.7x

  • Illumination

    LED Transmitted & Incident

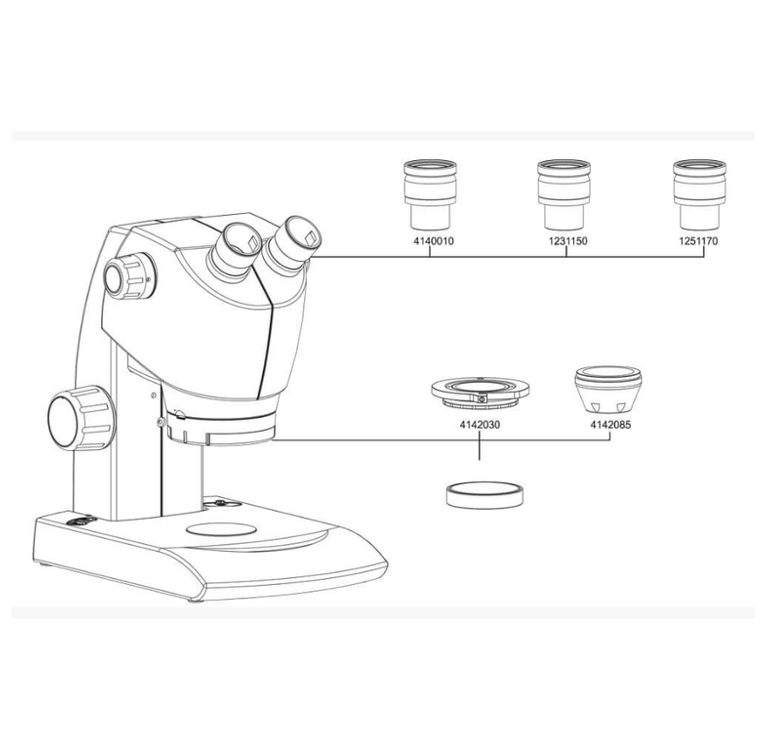

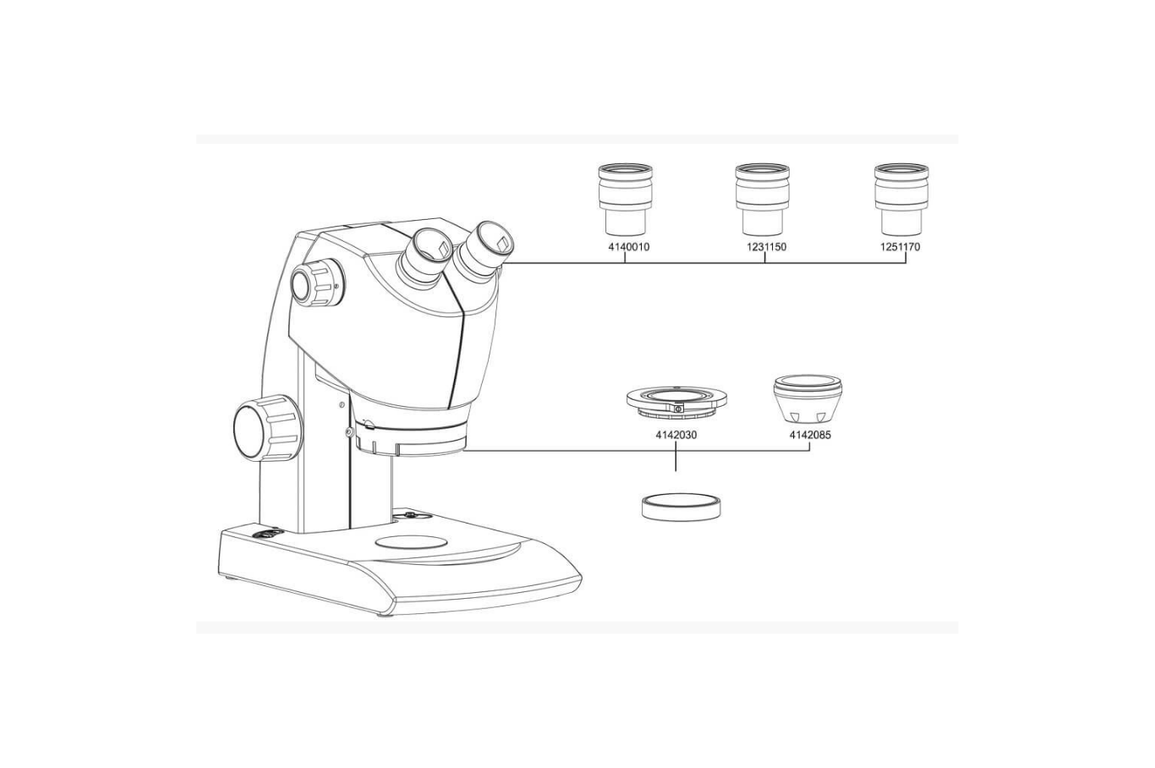

  • Accessories (Optional)
    • Pointers & Micrometer Reticules

    • Auxiliary Eyepieces

    • Polarizing Kit

    • Auxiliary Objectives

    • Soft Carrying Case

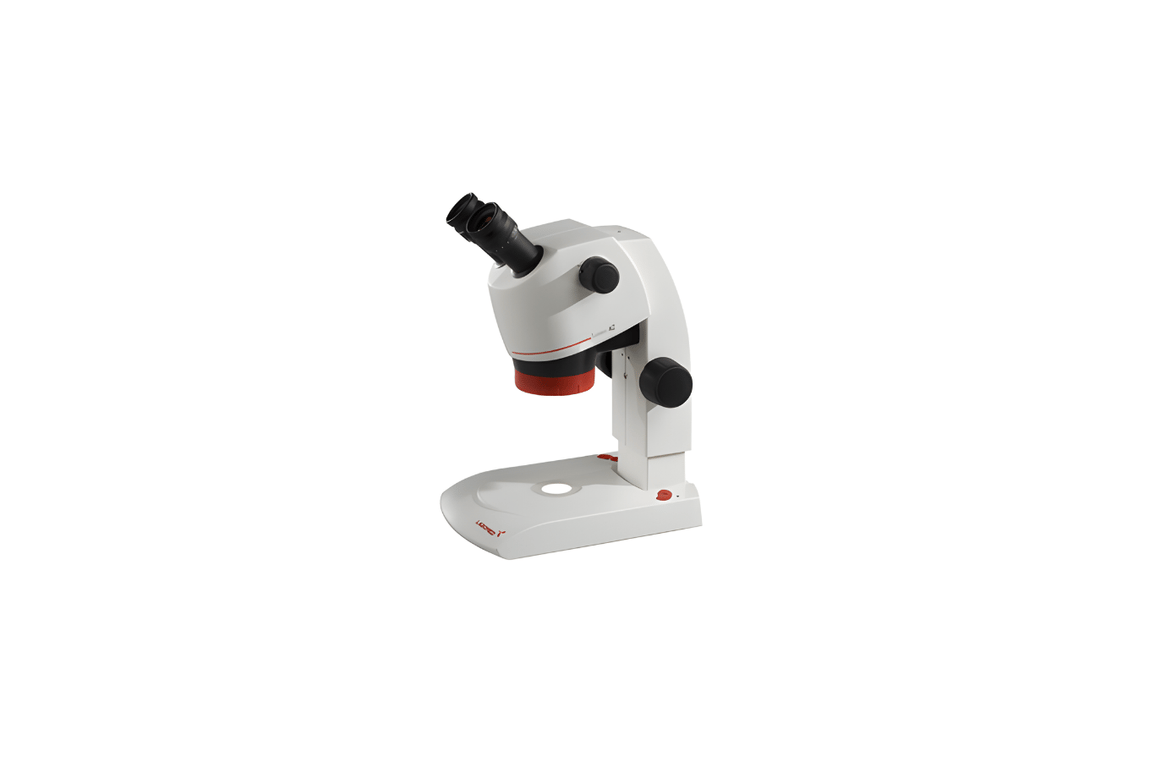

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.
